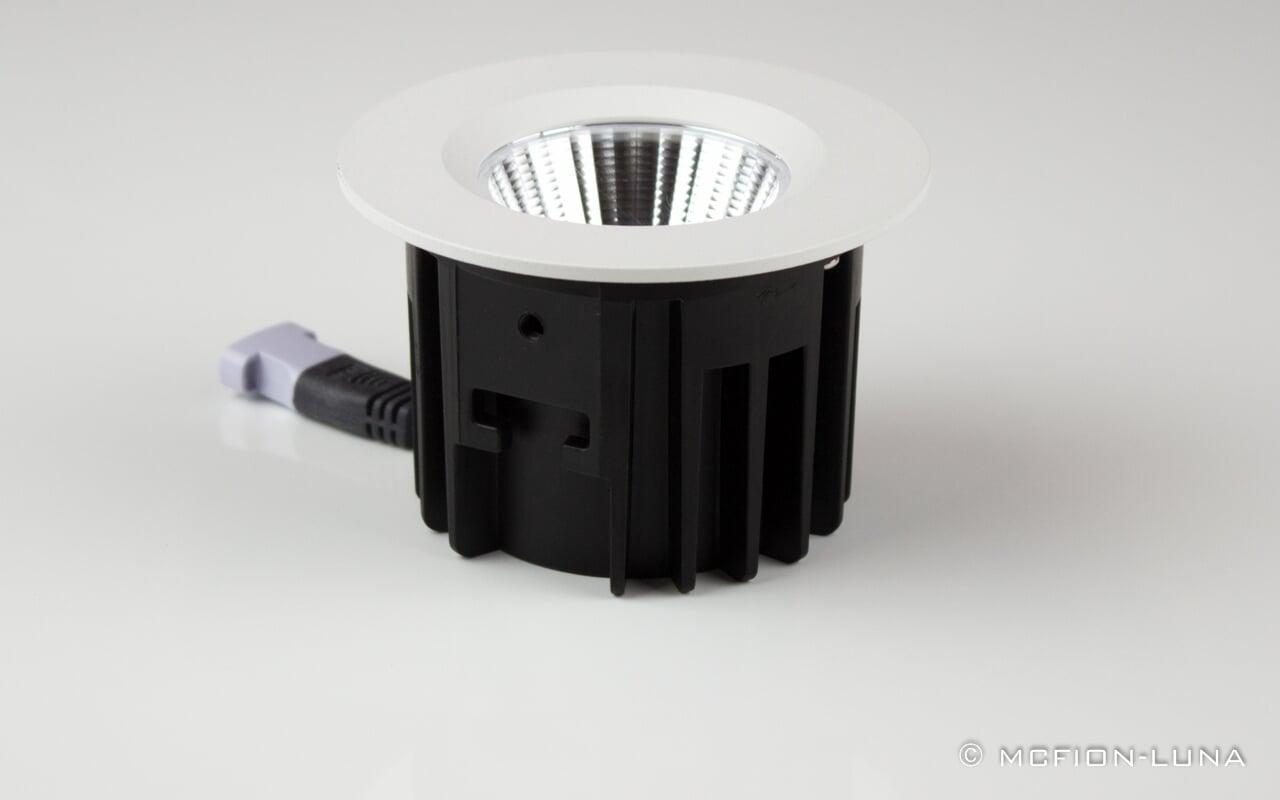

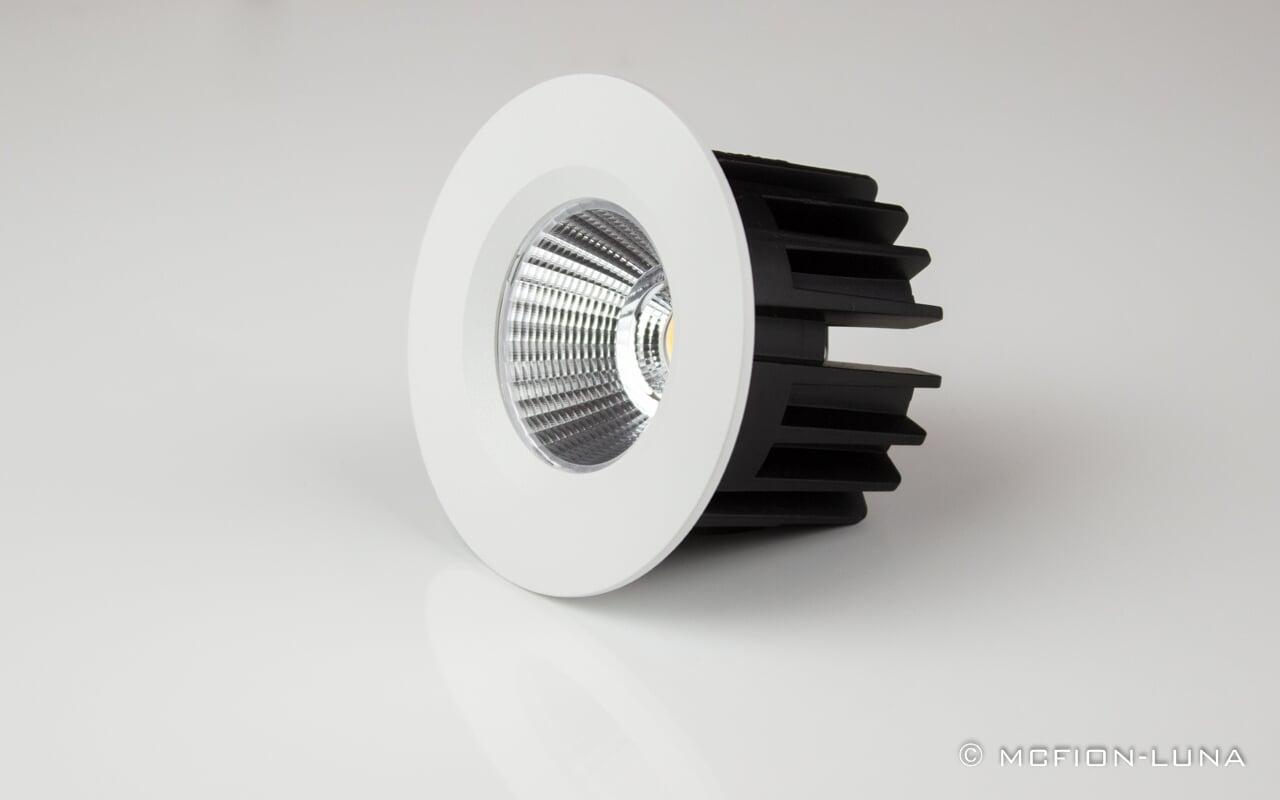

CRH Recessed Spotlight 10W CRH10-8
LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.
48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.
Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.
LN-CRH10-8
- Max. 10W, 5-10W optional
- CREE CRI93
- Beam angle 15/24/36 /60
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
10W Max. 5-10W optional
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE, OSRAM optional
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6500K
Color Randering Index:
>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°, 24°, 36°, 60°
Luminous Flux (LED):*
1250lm
Lumen Efficiency(LED)：*
125lm/W
Luminous Flux (Luminare):*
875lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed, Thickness, Max. 25mm.
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
Sanded black
IP Grade:
IP20
Size:
φ75mm, H52mm
Cutout:
φ60mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
