LUMU SPOT FAMILY

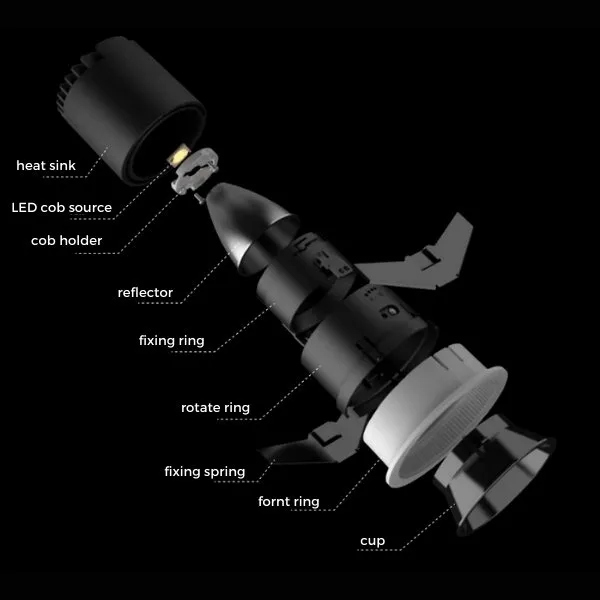

Family Design

By intensive consideration, we designed the LUMU series with multiple layers with the most possible shared parts. Enable the diversity & also functionality.

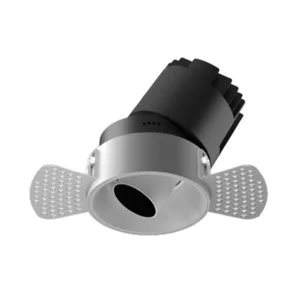

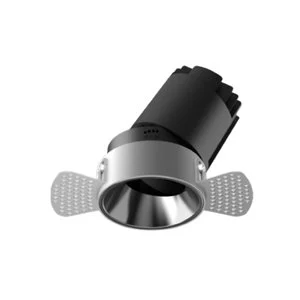

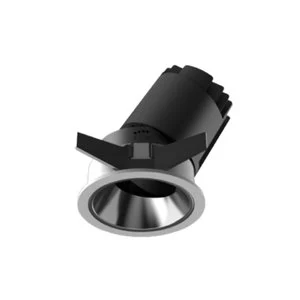

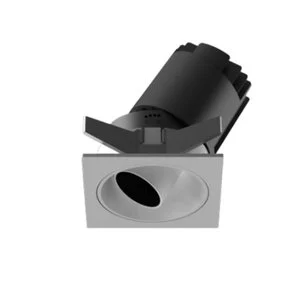

Rotate more than you think

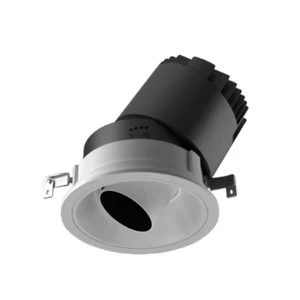

0-30° angle adjustable for wall washer
355° rotating to your desired angle
all come with fixing groove

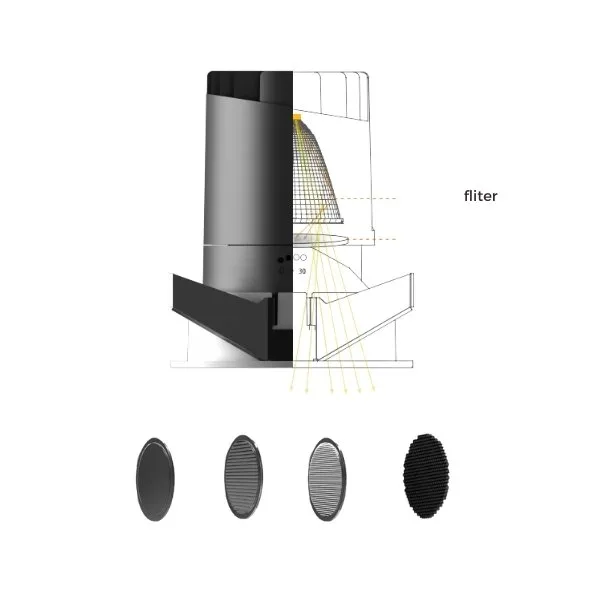

Optimized optical design

Offering excellent optical design

Providing 10°/ 15°/ 24°/ 38° optical lens or reflectors

Clear, milky, stripe, grille, honeycomb diffuser optional

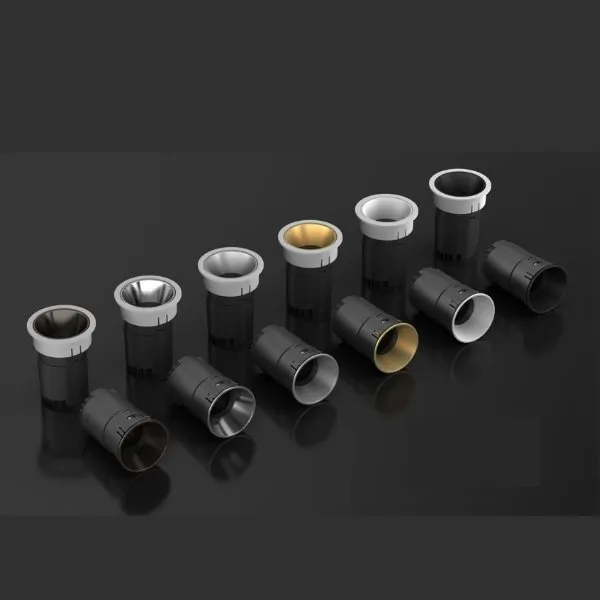

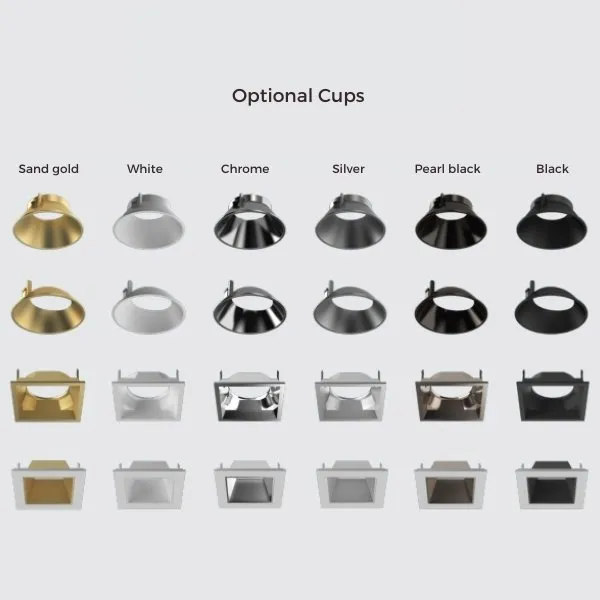

Colorful cups

4 shape, 6 colors

Always find the one fits

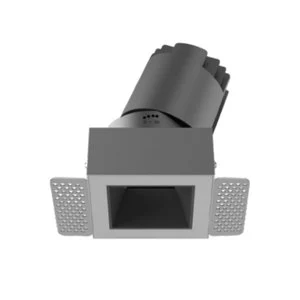

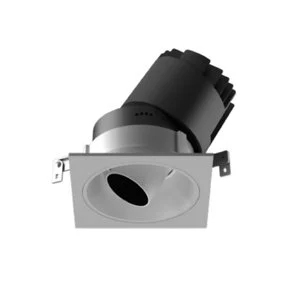

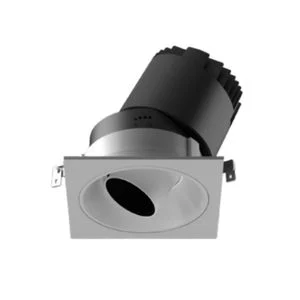

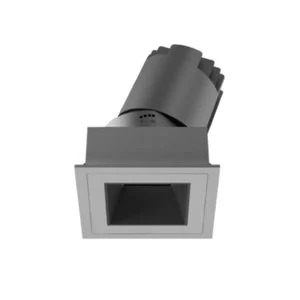

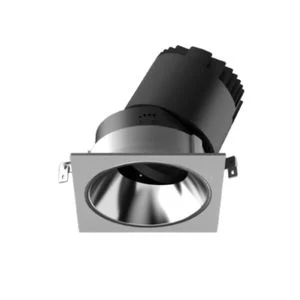

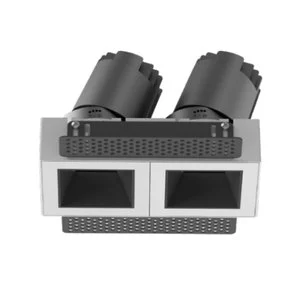

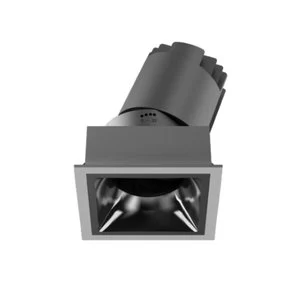

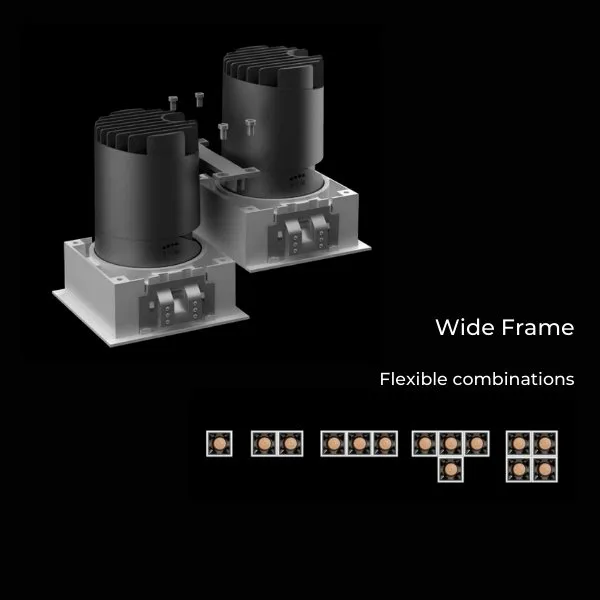

The Square, A transformer

You can easily use the square LUMU series to form many combinations.

Installation？
Be considerated

LUMU series fits surface thickness from 2-30mm.

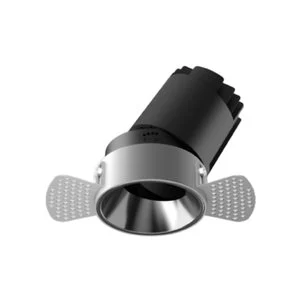

Normal recessed and trimless supported.

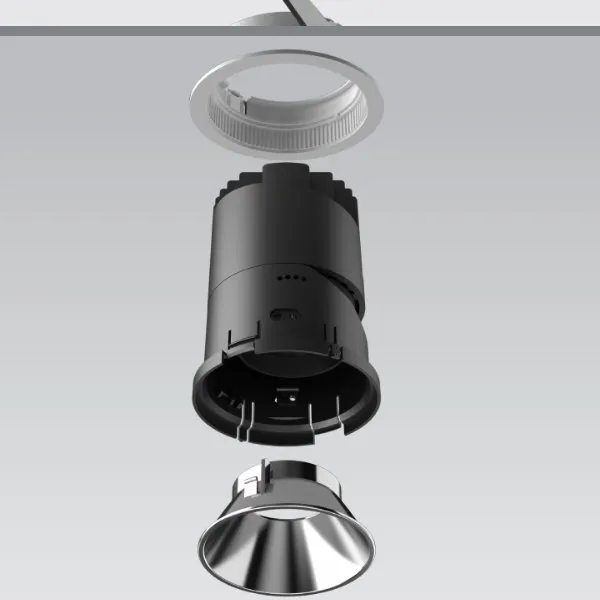

Easy replacement.

Lighting Effect

narrow spot Medium spot wall washer color temperature changing

Click below button to fill an online form.

We are happy to reply within 24 hours.

Inquiry Now

F Mark, suitable for flammable surface install Need to be grouded IP grade 20 indoor use optical designed Type II double isolated product High Color Rendering Index Anti-glare, comfortable for eyes Optional can be TRIAC dimming Optional can be DALI dimming Optional can be wireless bluetooth dimming

used COB led chips beam angle 10D beam angle 15D beam angle 24D beam angle 38D

Sort by Power

6W

12 series

10W

2 series

12W

10 series

20W

6 series

30W

6 series

Catalogue Download

6W LUMU SERIES

6W SLIM ROUND
LN-CR-LUMU-6-NRD

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-NRD	6W	D58xH73mm	D50mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

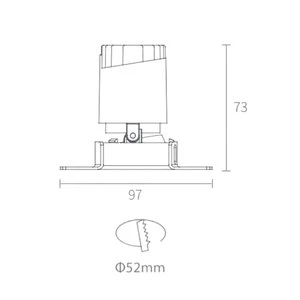

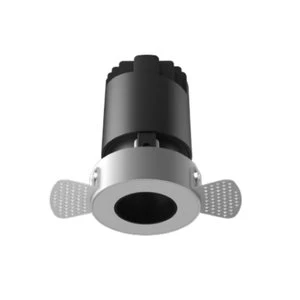

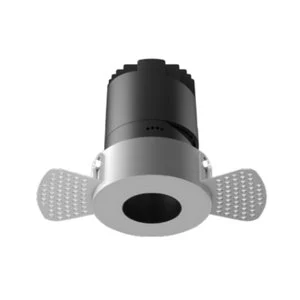

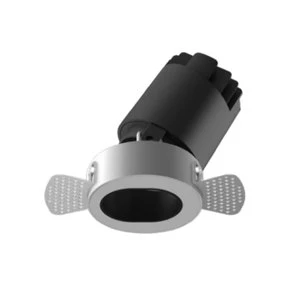

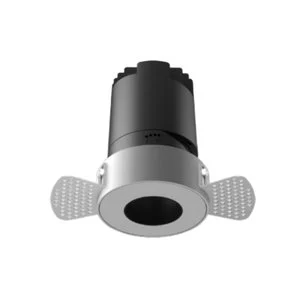

6W TRIMLESS ROUND
LN-CR-LUMU-6-TRD

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TRD	6W	D97xH73mm	D52mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

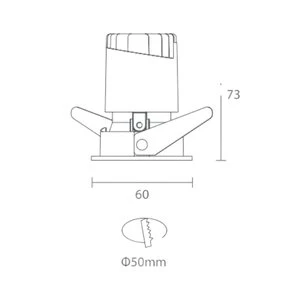

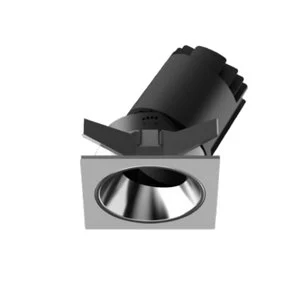

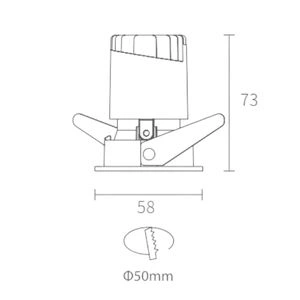

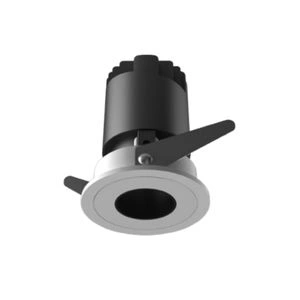

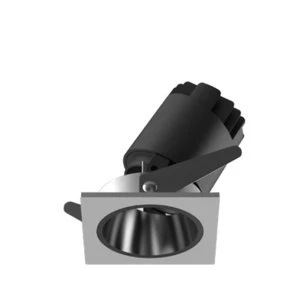

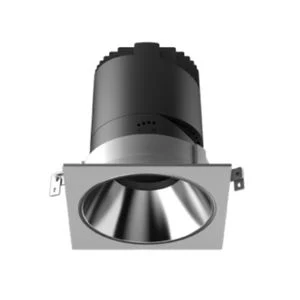

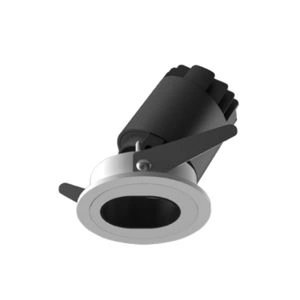

6W SQUARE
LN-CR-LUMU-6-SQ

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-SQ	6W	D60xH73mm	D50mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

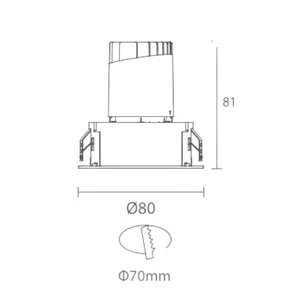

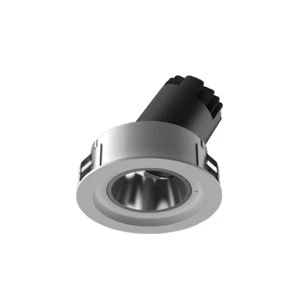

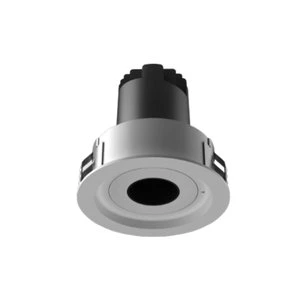

6W WIDE ROUND
LN-CR-LUMU-6-WRD

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-WRD	6W	D80xH81mm	D70mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

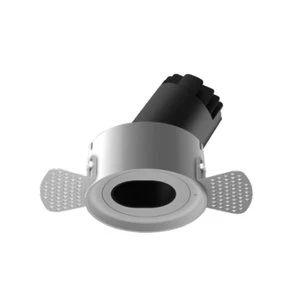

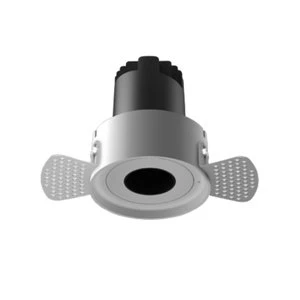

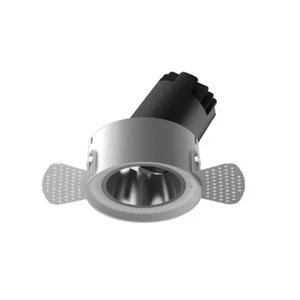

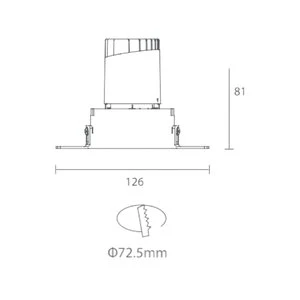

6W TRIMLESS WIDE
LN-CR-LUMU-6-TWRD

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TWRD	6W	D126xH81mm	D72.5mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

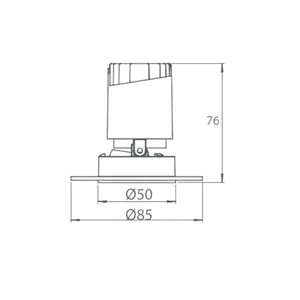

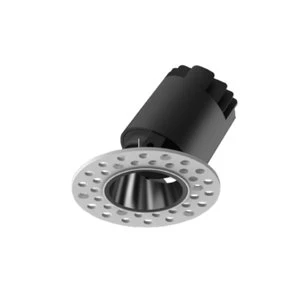

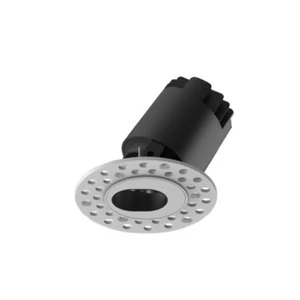

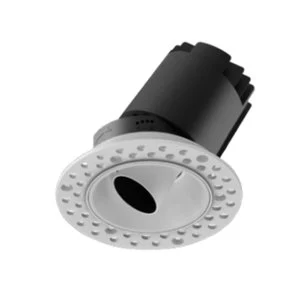

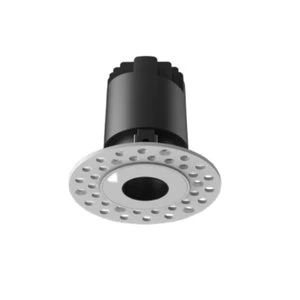

6W TRIMLESS TYPE II
LN-CR-LUMU-6-TRD2

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TRD2	6W	D85xH76mm	D50mm	cob CREE/OSRAM	LED 600lm Lamp 450lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

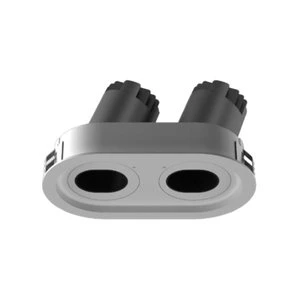

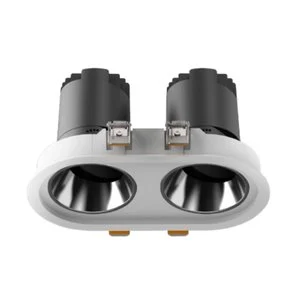

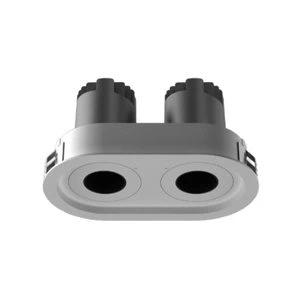

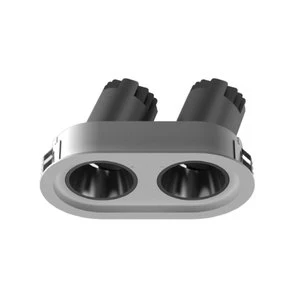

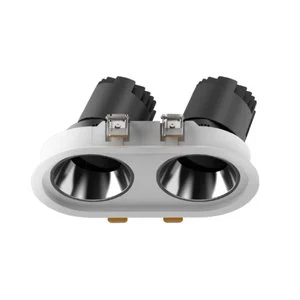

6W ROUND 2HEADS
LN-CR-LUMU-6-WRD-2

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-WRD-2	6Wx2	L140XW80xH81mm	130XD69mm	cob CREE/OSRAM	LED 600lmx2 Lamp 450lmx2	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

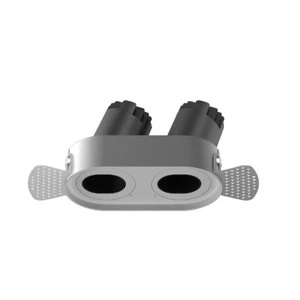

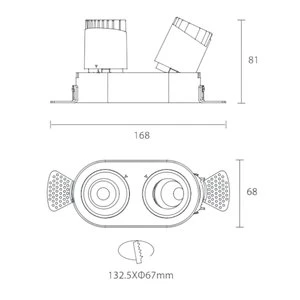

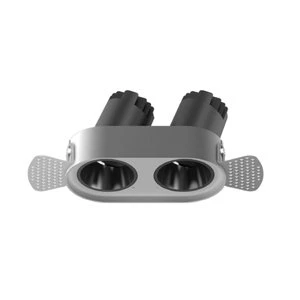

6W TRIMLESS 2HEADS
LN-CR-LUMU-6-TWRD-2

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TWRD-2	6Wx2	L168xW68xH81mm	L132.5x D67mm	cob CREE/OSRAM	LED 600lmx2 Lamp 450lmx2	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

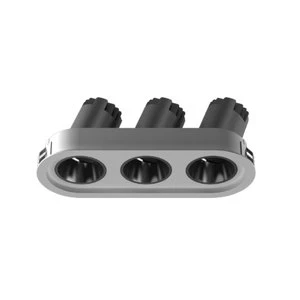

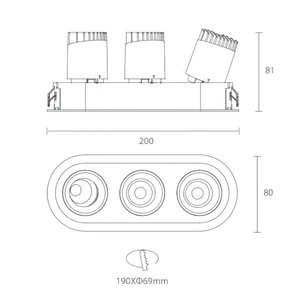

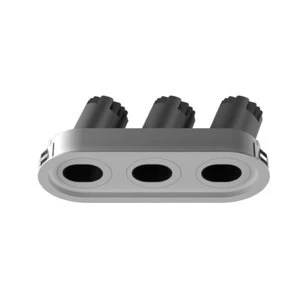

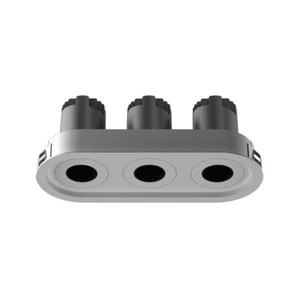

6W ROUND 3HEADS
LN-CR-LUMU-6-WRD-3

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-WRD-3	6Wx3	L200XW80xH81mm	190XD69mm	cob CREE/OSRAM	LED 600lmx3 Lamp 450lmx3	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

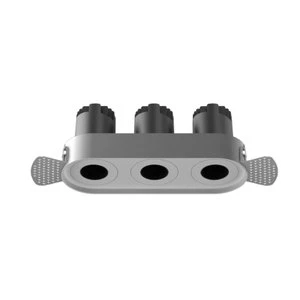

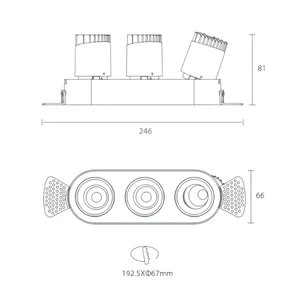

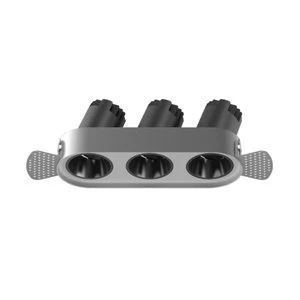

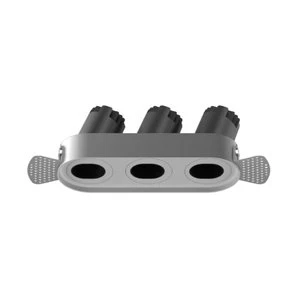

6W TRIMLESS 3HEADS
LN-CR-LUMU-6-TWRD-3

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TWRD-3	6Wx3	L246xW66xH81mm	L192.5x D67mm	cob CREE/OSRAM	LED 600lmx3 Lamp 450lmx3	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

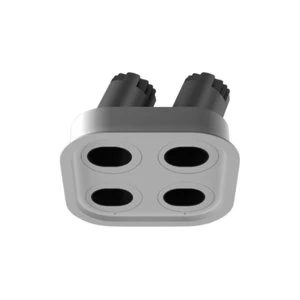

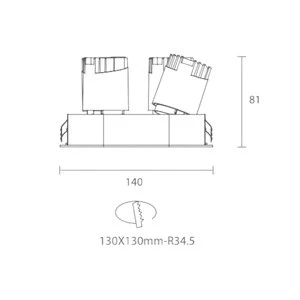

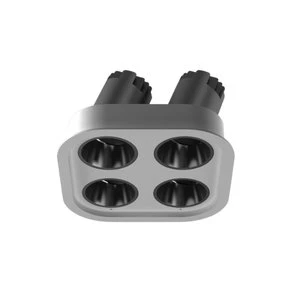

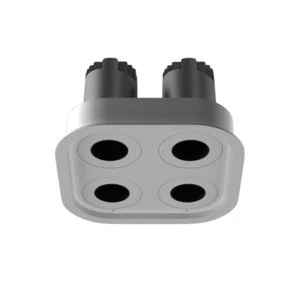

6W ROUND 4HEADS
LN-CR-LUMU-6-WRD-4

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-WRD-4	6Wx4	L140XW140xH81mm	L130XW130mm	cob CREE/OSRAM	LED 600lmx4 Lamp 450lmx4	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

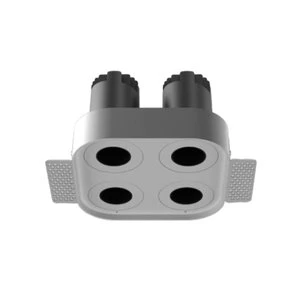

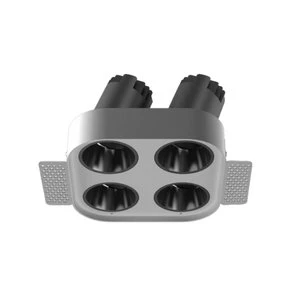

6W TRIMLESS 4HEADS
LN-CR-LUMU-6-TWRD-4

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-6-TWRD-4	6Wx4	L186xW126xH81mm	L132.5x D127.5mm	cob CREE/OSRAM	LED 600lmx4 Lamp 450lmx4	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

Scroll right to see more.

10W LUMU SERIE

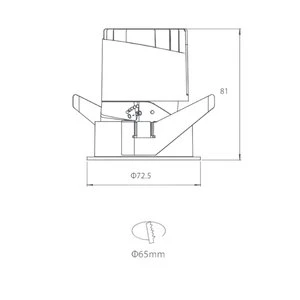

10W ROUND
LN-CR-LUMU-10

Model	Power	Lamp Size	Cutout Size	LED	Flux	C.C.T.	CRI	Beam angle
LN-CR-LUMU-10-NRD	10w	D72.5xH81mm	D65mm	cob CREE/OSRAM	LED 1050lm Lamp 750lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°

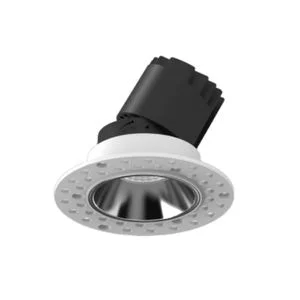

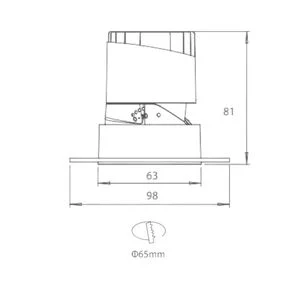

LN-CR-LUMU-10-TRD	10w	D98xH81mm	D65mm	cob CREE/OSRAM	LED 1050lm Lamp 750lm	3000K/4000K/6500K	>80, >90	10°/15°/24°/38°
