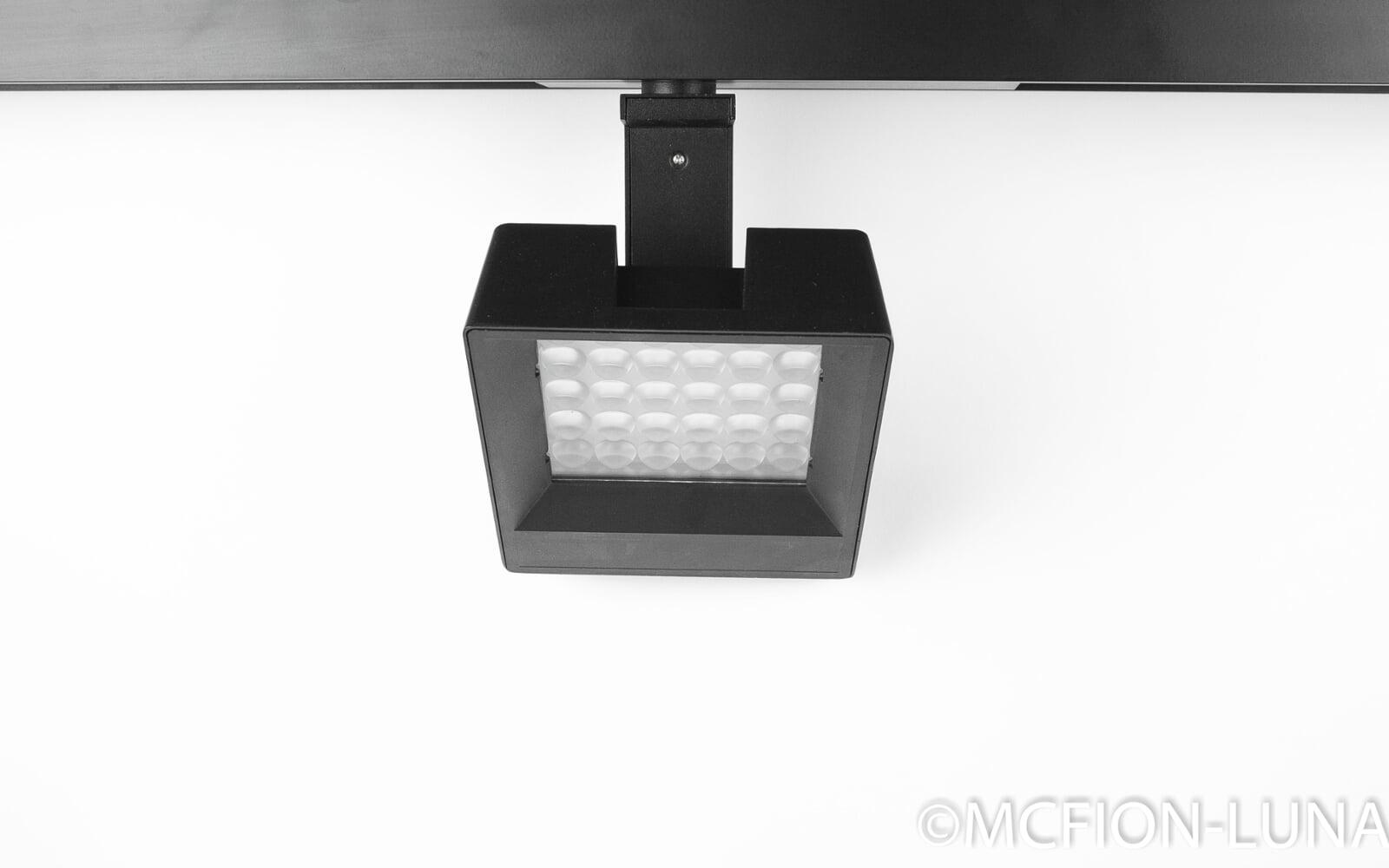

30W Spotlight on Magnetic Track
LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.
48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.
Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.
LN-CMG-TS30
- Max. 30W, 20-30W optional
- CREE CRI93
- Beam angle 15/30/60
- Mesh control, 0/1-10V, DALI optional
Need more help？
Power:*
30W Max. 20-30W optional
Input Voltage:
DC48V
Dimming：
On/Off, 0/1-10V, DALI, Mesh wireless
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE, OSRAM optional
LED Chip Qty:
30pcs
LED Type:
SMD3030
C.C.T.：
3000K, 4000K, 6500K
Color Randering Index:
>80, or >90
Lumen Maintenance:
LM80
SDCM:
4 steps
Beam Angle:
15°,30°,60°
Luminous Flux (LED):*
3300lm
Lumen Efficiency(LED)：*
125lm/W (CRI90)
Luminous Flux (Luminare):*
1950lm（at 30°）
Lumen Efficiency (Luminare):*
65lm/W (at 30°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
M35 Magnetic Track
Surface Treament:
Powder-coated
Housing Color:
IP Grade:
IP20
Size:
L220mm，W137mm，Thickness 47mm
Cutout:
N/A
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers optional.
- dimming functions: 0/1-10V, DALI, Mesh optional.
- emergency kit with specific duration.
