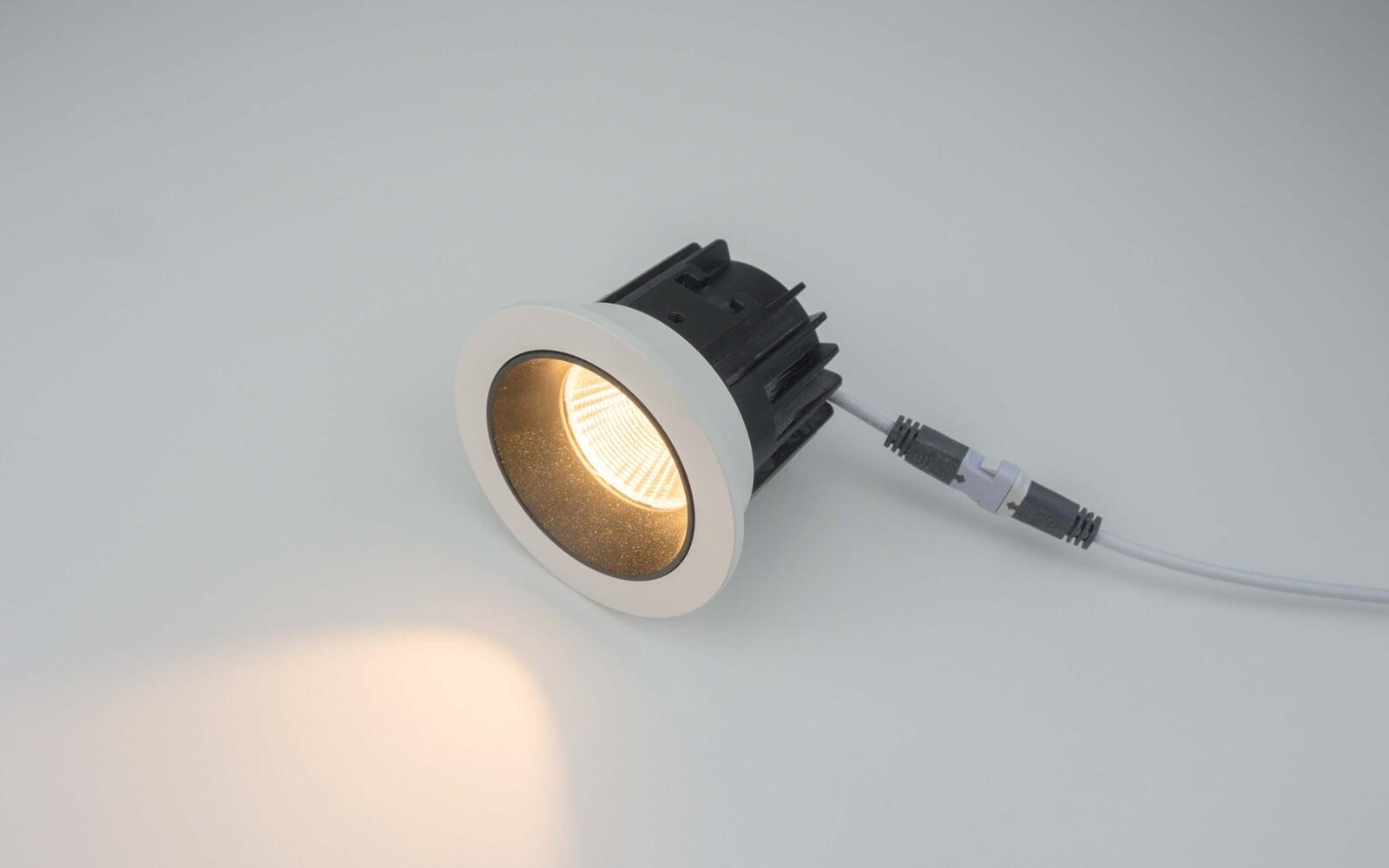

CRH Recessed Spotlight 10W CRH10-5
LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.
48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.
Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.
LN-CRH10-5
- Max. 10W, 5-10W optional
- CREE CRI93
- Beam angle 0-45
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
10W Max. 5-10W optional
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE, OSRAM optional
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6500K
Color Randering Index:
>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
0°-45°
Luminous Flux (LED):*
1250lm
Lumen Efficiency(LED)：*
125lm/W
Luminous Flux (Luminare):*
875lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:

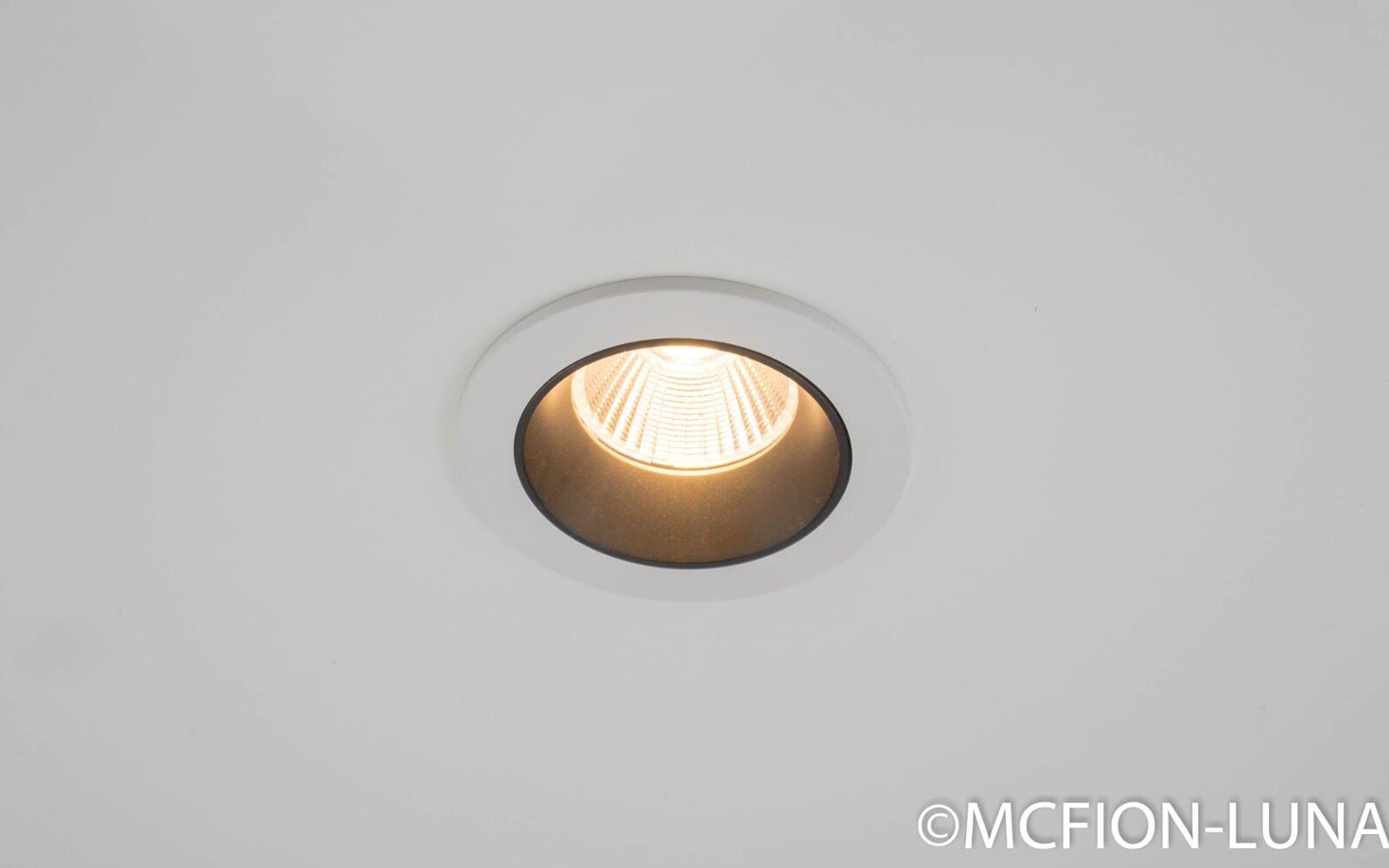

Ceiling recessed, Thickness, Max. 25mm.
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
Sanded black
IP Grade:
IP20
Size:
φ92mm, H63mm
Cutout:
φ80mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
In the same series
LN-CRH10-1
Angle adjustable D76mm φ60mm
LN-CRH10-2
Straight adjustable D108mm φ95mm
LN-CRH10-3
High curve fixed D85mm φ70mm

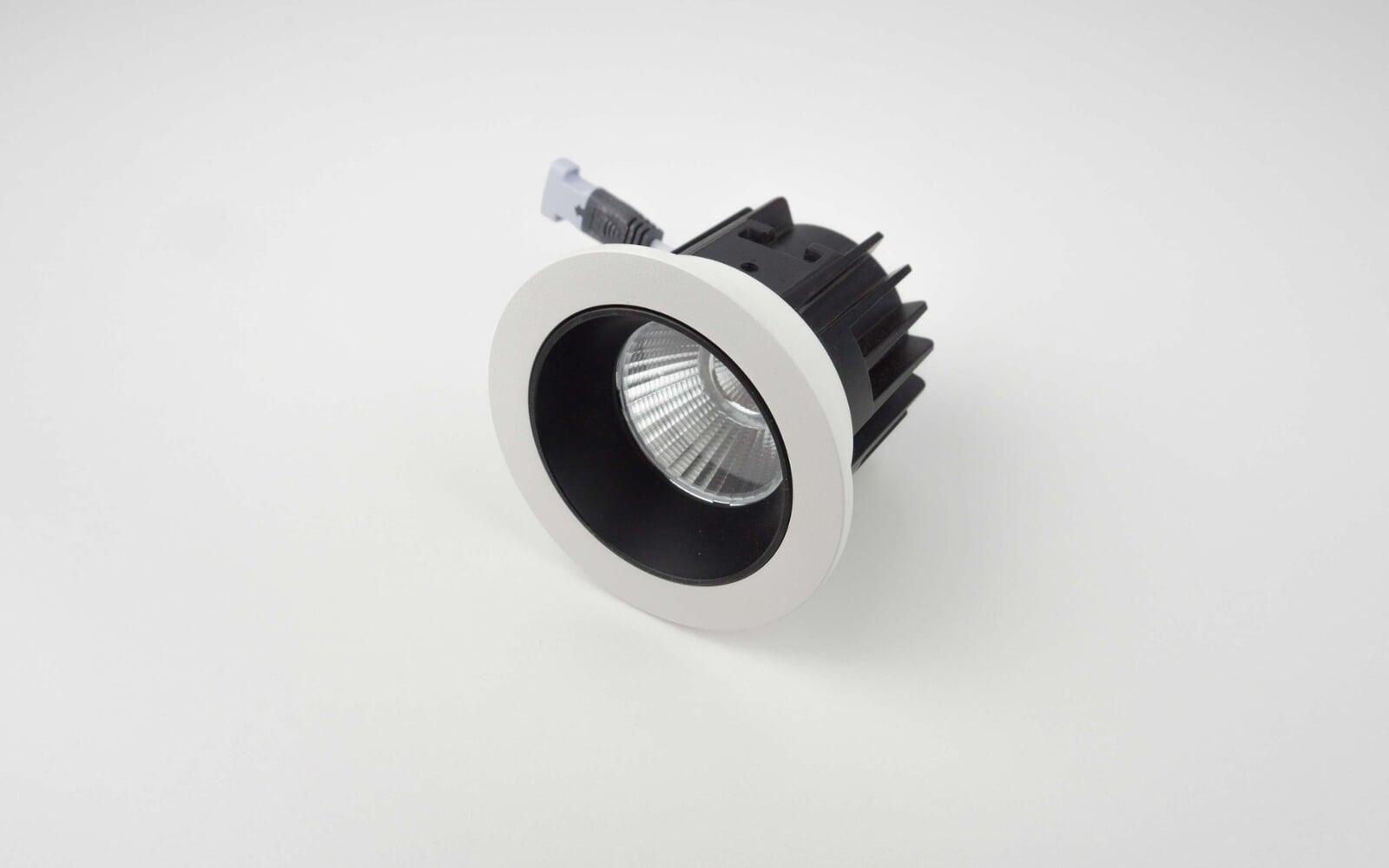

LN-CRH10-4
Black ring fixed D80mm φ65mm
LN-CRH10-5
Black ring adjustable D92mm φ80mm
LN-CRH10-6
Curve edge fixed D86mm φ68mm
LN-CRH10-7
Deep black adjustable D100mm φ85mm
LN-CRH10-8
Tiny white fixed D75mm φ60mm
LN-CRH10-9
Tiny white adjustable D86mm φ75mm
LN-CRH10-10
Big white adjustable D100 φ90mm
