EMBEDDED TELESCOPIC SPOTLIGHTS CRXLS-FL3
LN-CRXLS-FL3
- Max. 25*3W, 15-25W optional
- CREE CRI93
- Beam angle 12/24/38
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
25*3W Max. 15-25W optional
Input Voltage:
AC220-240V
Dimming：
On/Off, TRIAC, 0/1-10V, DALI Mesh
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE, OSRAM PHILIPS
LED Chip Qty:
3pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6500K
Color Randering Index:
>80>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
12°/24°/38°
Luminous Flux (LED):*
8665lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
5400lm (at 24°)
Lumen Efficiency (Luminare):*
75lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed, Thickness, Max. 25mm.
Surface Treament:
Powder-coated
Housing Color:
Sanded White
IP Grade:
IP20

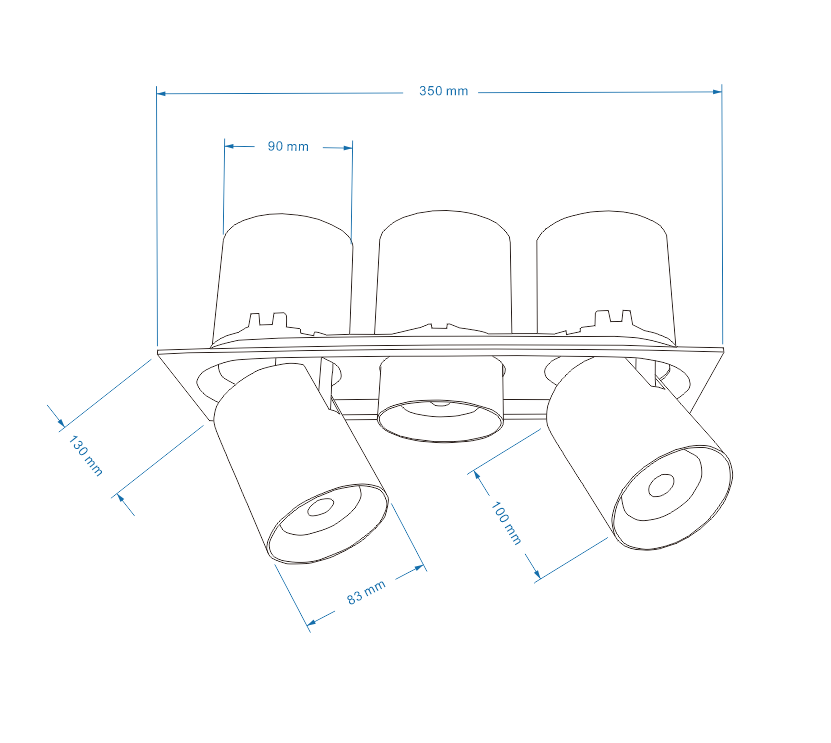

Size:
φ130mm*345mm*H135mm
Cutout:
φ120mm*335mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
25W Big Series
LN-CRXLS-FL1
Angle adjustable 25W φ120mm
LN-CRXLS-FL2
Angle adjustable 25*2W φ120*230mm
LN-CRXLS-FL3
Angle adjustable 25*3W φ120*335mm
LN-CRXFL-YL1
Angle adjustable 25W φ120*335mm
12W Small Series
LN-CRXLS-FS1
Angle adjustable 12W φ90mm
LN-CRXLS-FS2
Angle adjustable 12*2W φ90*175mm
LN-CRXLS-FS3
Angle adjustable 12*3W φ90*260mm
