Surface Mounted Downlight 15W LN-CCM125-C4
LN-CCM125-C4
- Max. 15W
- CREE CRI>80
- Beam angle 15/24/36 /60
Need more help？
Power:*
15W
Input Voltage:
220-240V
Dimming：
On/Off
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
SMD5630
LED Chip Qty:
1pcs
LED Type:
SMD
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
> 80
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
0°-45°
Luminous Flux (LED):*
1250lm
Lumen Efficiency(LED)：*
125lm/W
Luminous Flux (Luminare):*
875lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling surface decoration
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
Sanded white
IP Grade:
IP20

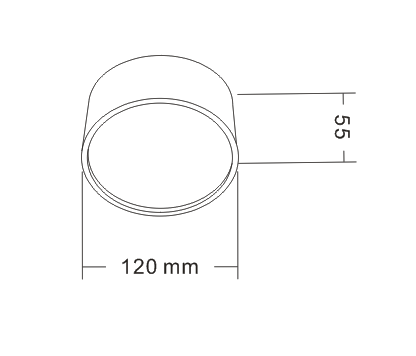

Size:
φD120mm, H55mm
Cutout:
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
In the same series
LN-CCM125-C1
15W φ D(123-136)*55mm
LN-CCM125-C2
15W φ D(120-135)*55mm
LN-CCM125-C3
15W φ D126*55mm
LN-CCM125-C4
15W φ D120*55mm
