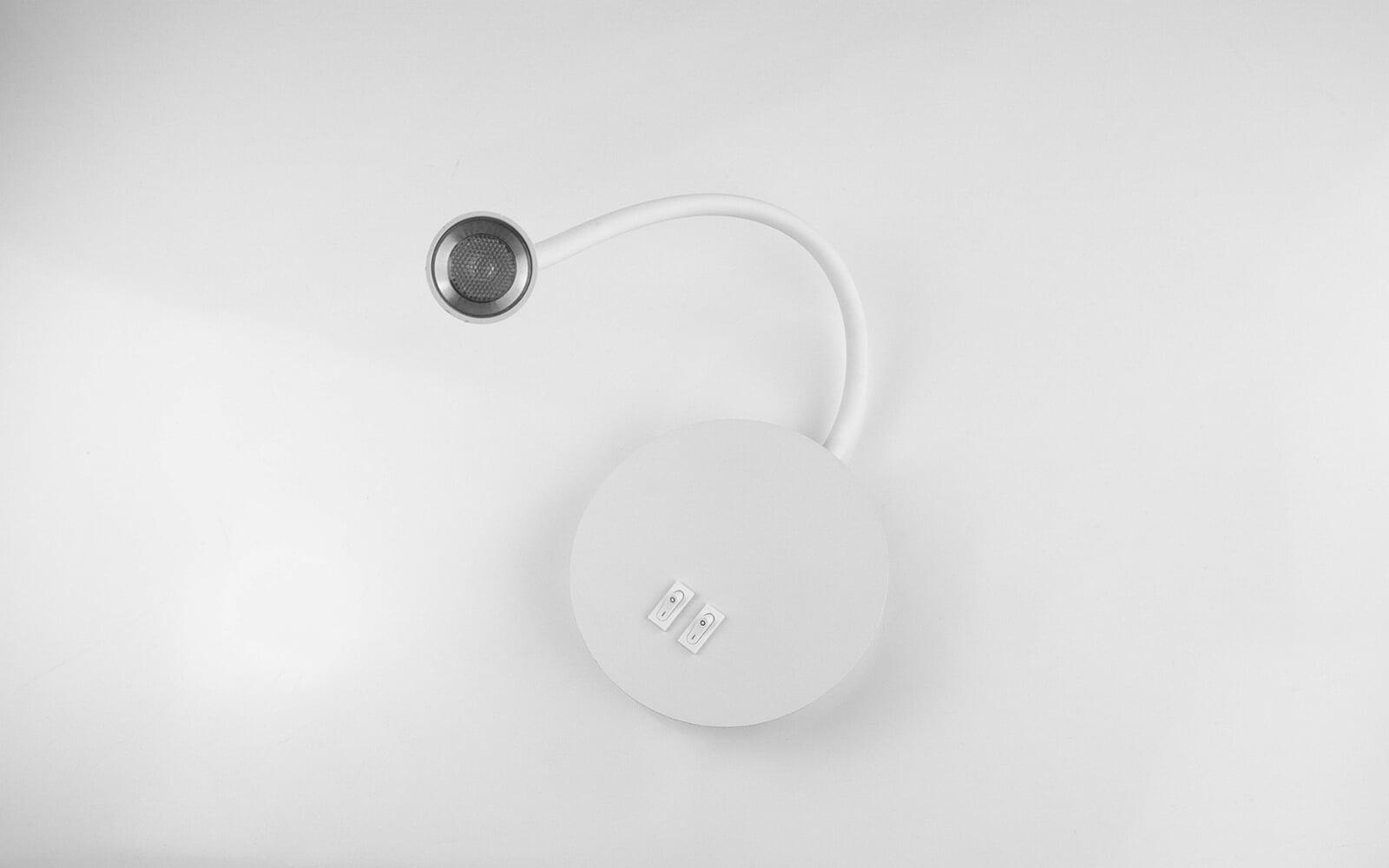

Luna lighting design hotel bedroom living room wall led double switch bent arm rotating black white wall lamp

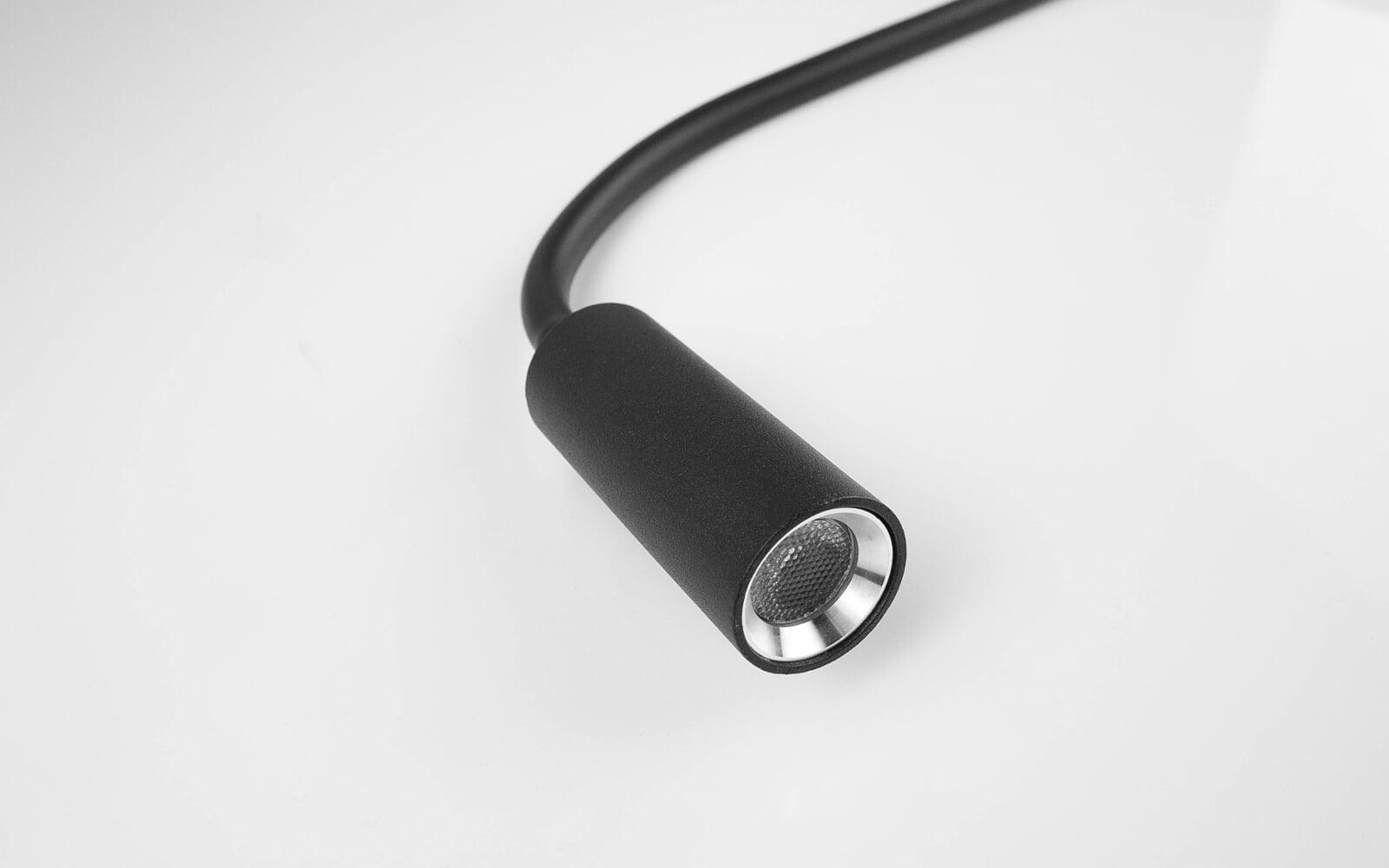

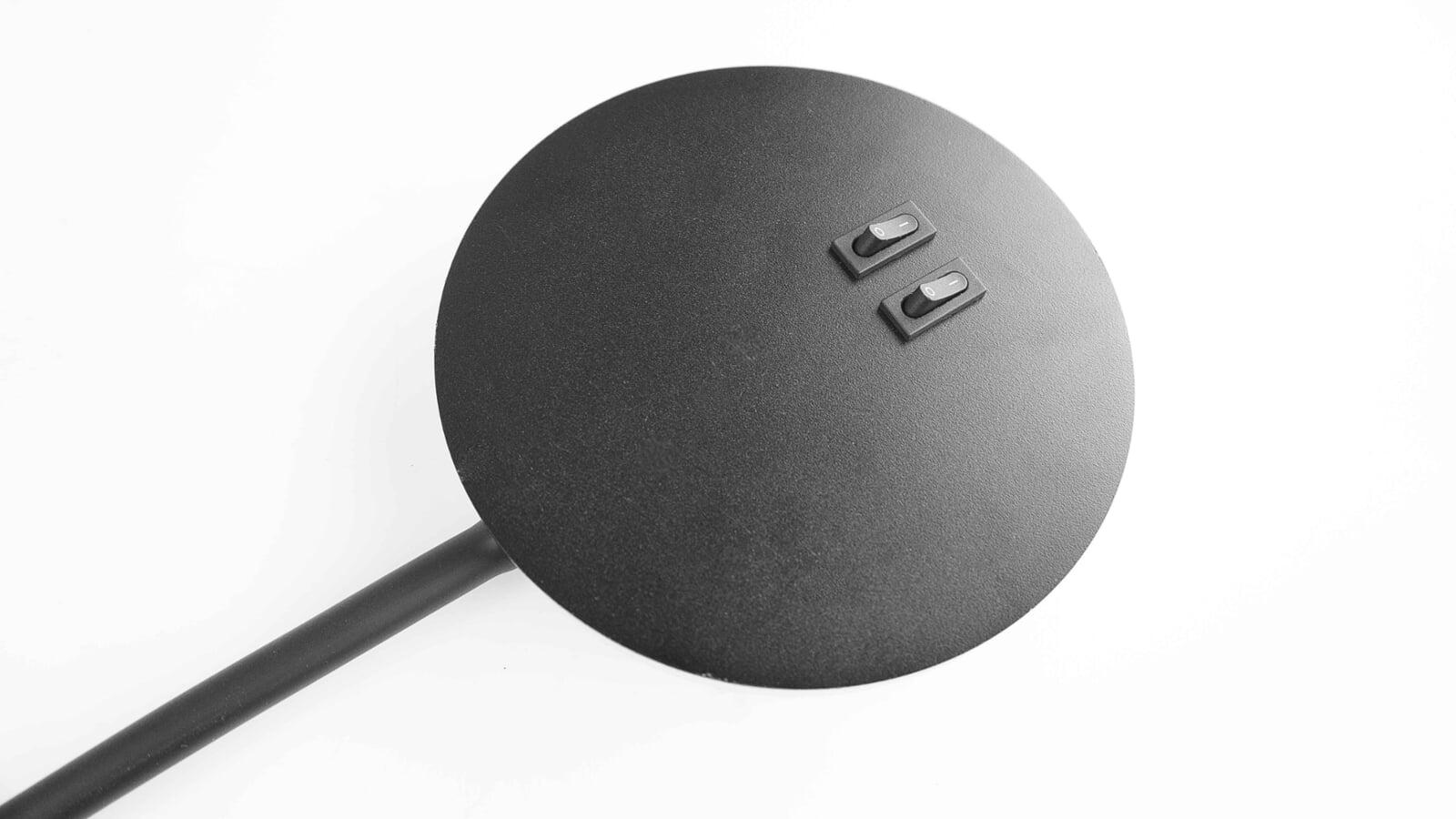

LN-WY-rotate-B
- Max. 10W
- CREE CRI93
- Beam angle 15/24/36 /60
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
10W Max
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
San'an
LED Chip Qty:
1pcs
LED Type:
SMD
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
0°-45°
Luminous Flux (LED):*
Lumen Efficiency(LED)：*
Luminous Flux (Luminare):*
Lumen Efficiency (Luminare):*
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed, Thickness, Max. 25mm.
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
Sanded black
IP Grade:
IP20

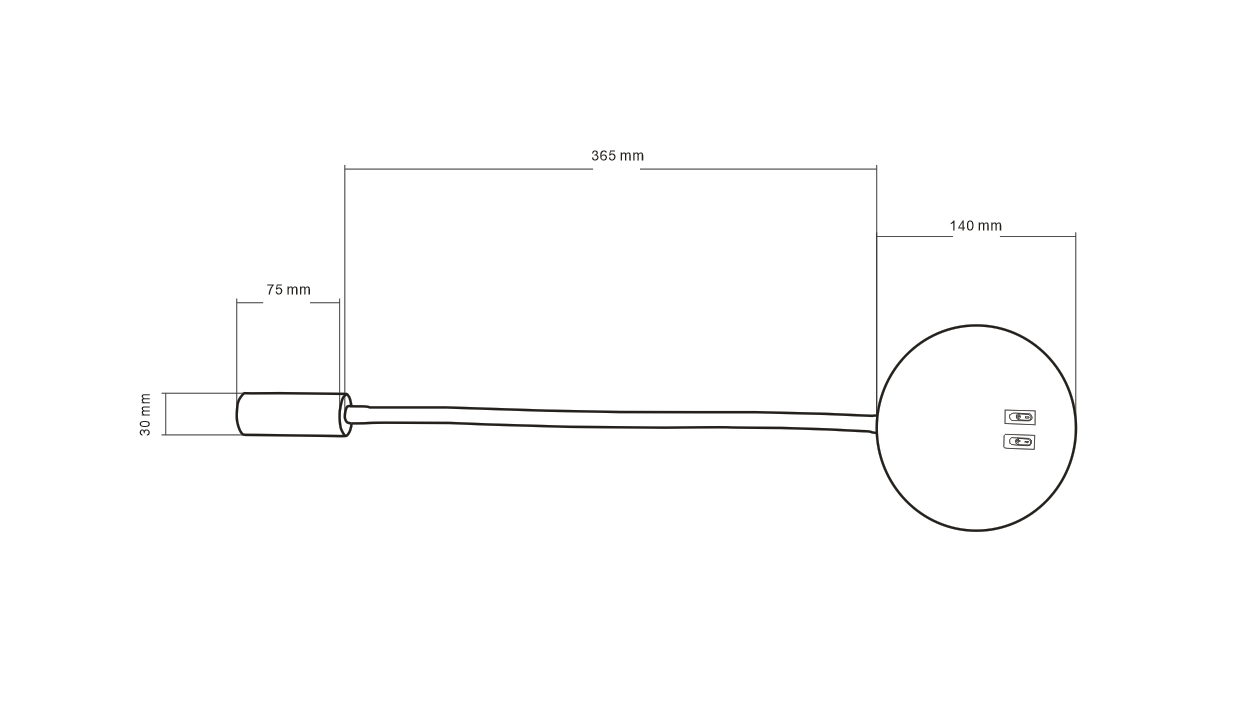

Size:
L580mm,D140mm,D30mm
Cutout:
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.

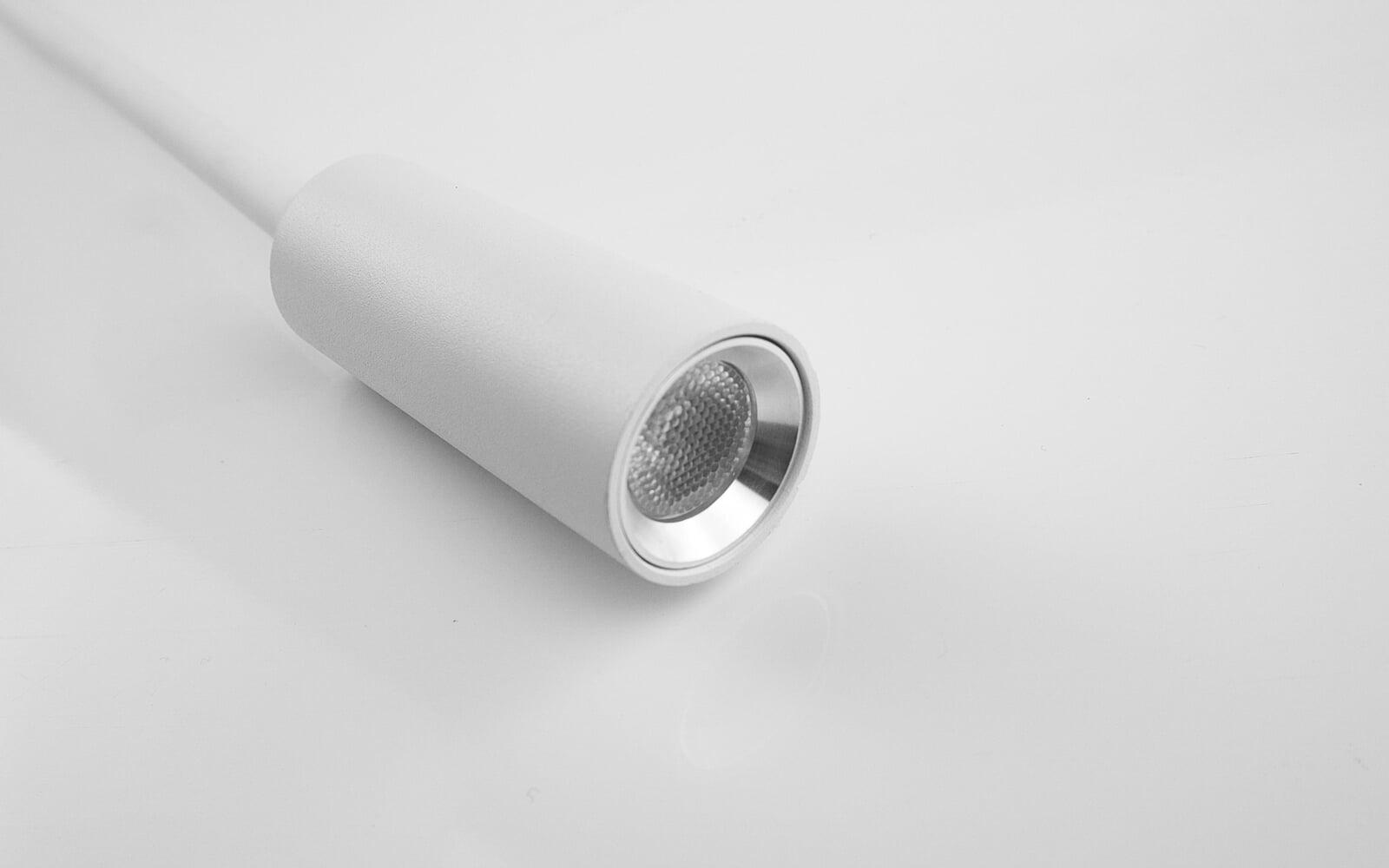

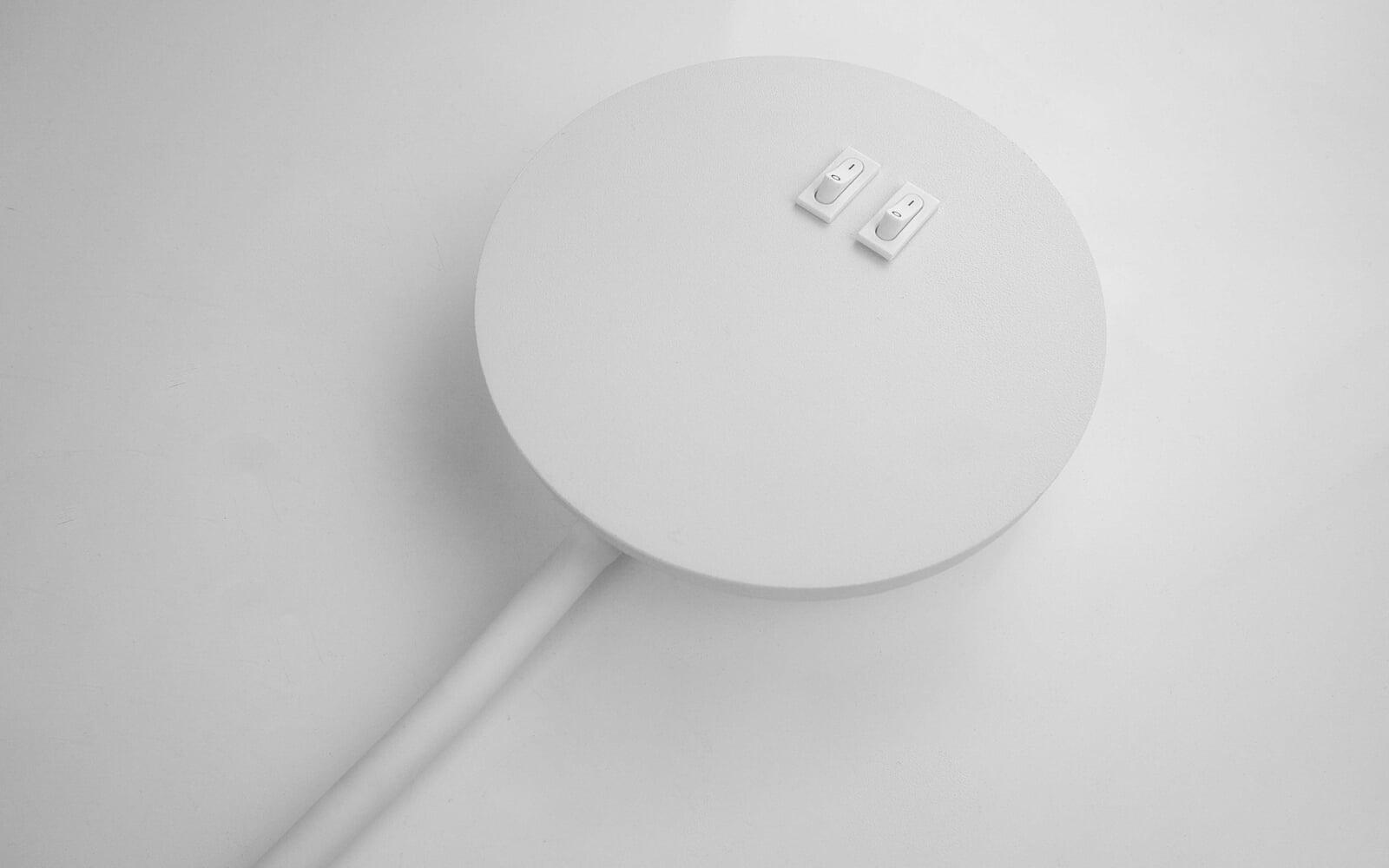

LN-WY-rotate-W
- Max. 10W
- CREE CRI93
- Beam angle 15/24/36 /60
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
10W Max
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
San'an
LED Chip Qty:
1pcs
LED Type:
SMD
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
0°-45°
Luminous Flux (LED):*
Lumen Efficiency(LED)：*
Luminous Flux (Luminare):*
Lumen Efficiency (Luminare):*
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed, Thickness, Max. 25mm.
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
Sanded white
IP Grade:
IP20
Size:
L580mm,D140mm,D30mm
Cutout:
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
