DIY your style by Luna Climbing series
LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.
48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.
Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.
LN-PMSC-L15-28
- Max. 28W, 15-28W optional
- CREE CRI90
- Beam angle 360°
Need more help？
Power:*
28W Max. 15-28W optional
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM
LED Chip Qty:
1075pcs
LED Type:
SMD2835
C.C.T.：
2700K, 3000K, 4000K, 6500K
Color Randering Index:
>80, or >90
Lumen Maintenance:
LM80
SDCM:
4 steps
Beam Angle:
360°
Luminous Flux (LED):*
3100lm
Lumen Efficiency(LED)：*
125lm/W (CRI90)
Luminous Flux (Luminare):*
2000lm (at 24°)
Lumen Efficiency (Luminare):*
80lm/W (at 24°)
Body & Heatsink:
Metal
Optics:
Optical Silicon
Installation:
Hanging
Surface Treament:
Electroplating
Housing Color:
IP Grade:
IP20

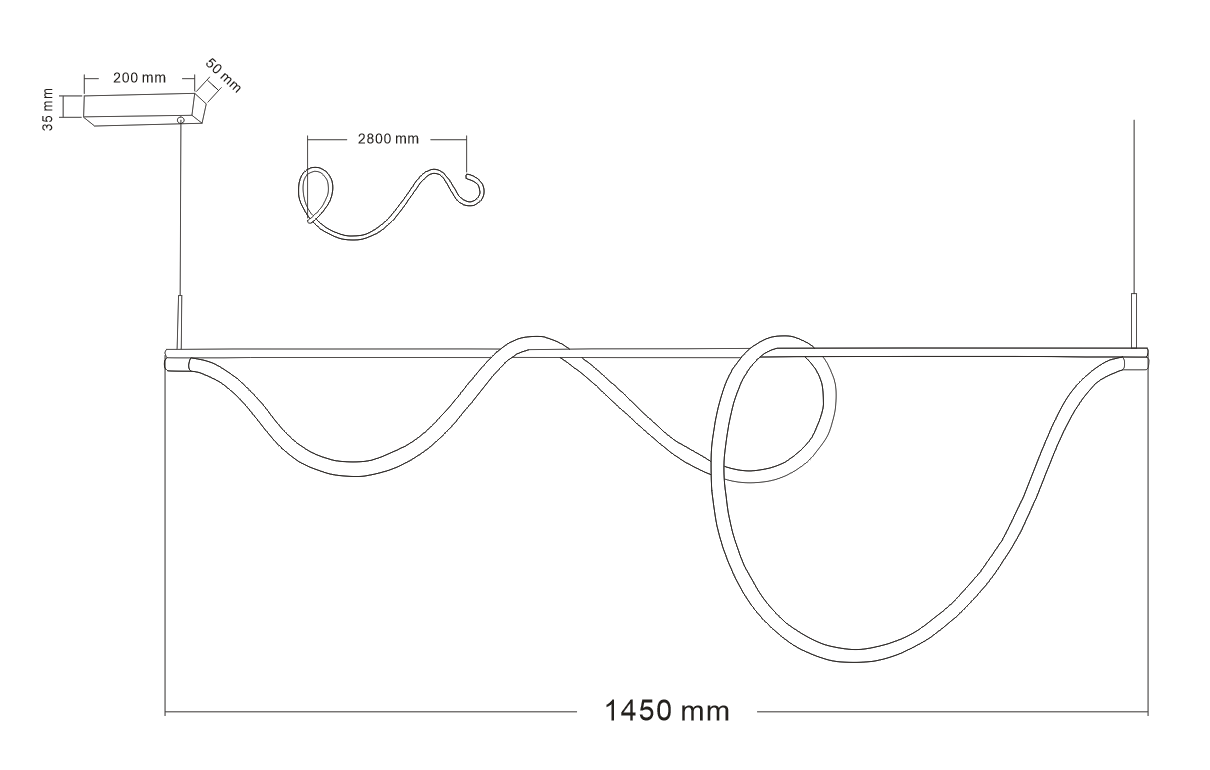

Size:
metal: L1450mm; tube; L2800mm
Cutout:
N/A
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers optional.
- dimming functions: 0/1-10V, DALI, Mesh optional.
- emergency kit with specific duration.
