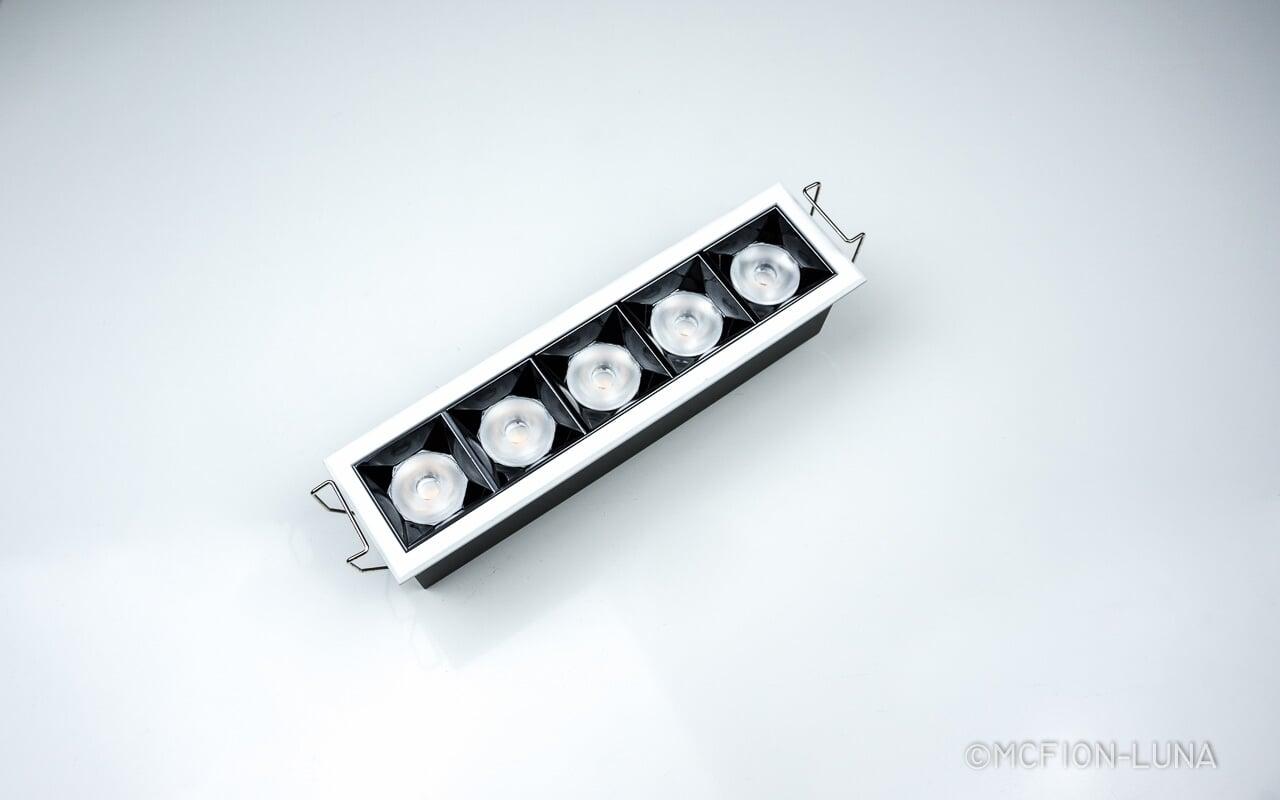

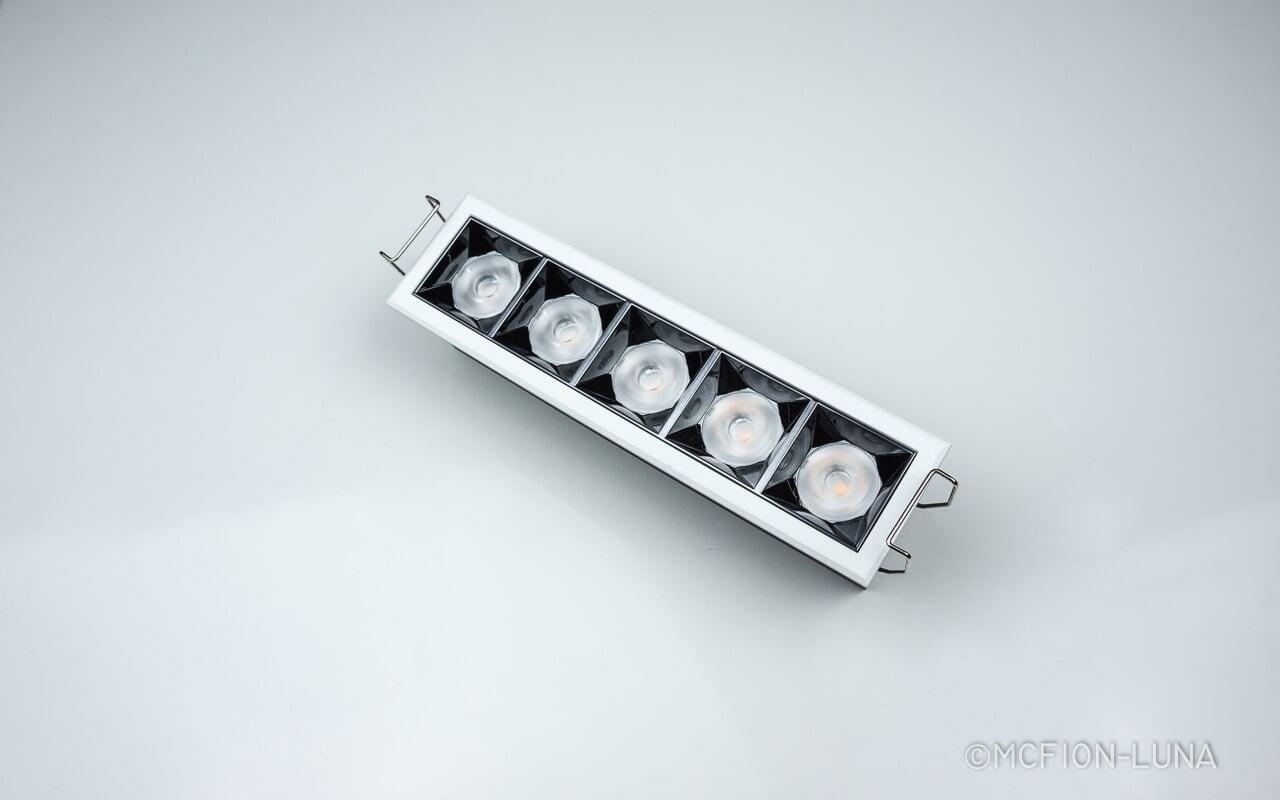

Ceiling Mounted Square Linear Spotlight
LN-CROLINE-L5
- Max. 20W. 12-20Woptional
- CREE CRI90
- Beam angle 15/30/45
- TRIAC, 0/1-10V, DALI optional
Need more help？
Power:*
20W Max. 12-20W optional
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE, OSRAM optional
LED Chip Qty:
5pcs
LED Type:
SMD
C.C.T.：
3000K, 4000K, 6500K
Color Randering Index:
>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°, 30°, 45°
Luminous Flux (LED):*
2175lm
Lumen Efficiency(LED)：*
125lm/W
Luminous Flux (Luminare):*
1400lm (at 24°)
Lumen Efficiency (Luminare):*
70m/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling mounted
Surface Treament:
Powder-coated, sanded black
Housing Color:
Sanded black
IP Grade:
IP20

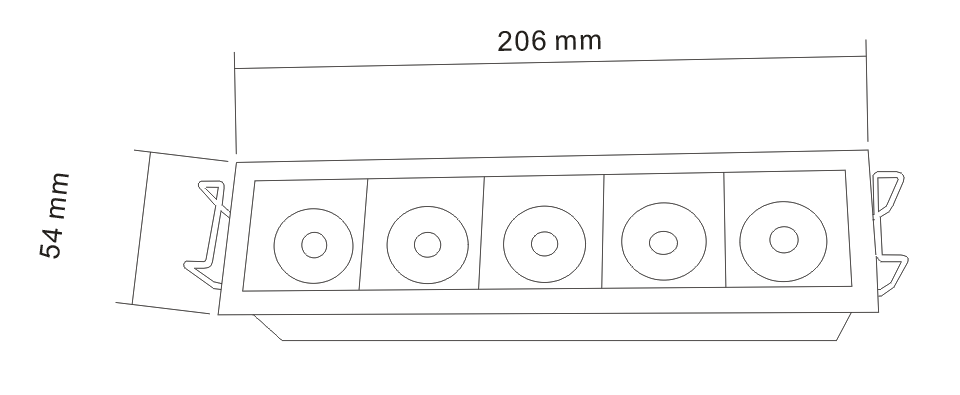

Size:
L206mm. W54mm. H52mm
Cutout:
L201mm. W49mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
